[Eric Gregory](https://cosmonic.com/blog/team/eric-gregory/)

| Aug 6, 2025| 10 min read

# Cosmonic Control: Wasm in Your GitOps Flow

![Cosmonic Control: Wasm in Your GitOps Flow](https://cosmonic.com/blog/assets/images/gitops-3fafb04aaf7c94a57a9ff4ca57ae85fe.webp)

Recently, we launched the [Cosmonic Control Technical Preview](https://cosmonic.com/blog/2025-07-07-cosmonic-control-technical-preview/), giving platform engineering teams the chance to try our enterprise control plane for managing WebAssembly (Wasm) workloads in cloud-native environments.

Cosmonic Control integrates seamlessly with existing cloud native standards, technologies, and estates, so you can deploy and manage Wasm workloads with industry-standard patterns and tooling, such as **GitOps** with [Argo CD](https://argo-cd.readthedocs.io/en/stable/).

In this blog, we'll take a look at how Cosmonic Control integrates with Argo CD, enabling platform engineering teams to manage ultra-dense sandboxed platforms with Wasm using their existing GitOps approach. Then we'll walk through deploying Cosmonic Control and a Wasm component with Argo CD.

## Wasm-native *and* cloud-native

Building on the foundations of open source wasmCloud, Cosmonic Control unlocks the full power of the Wasm component model to drive new patterns like the [platform harness](https://wasmcloud.com/blog/2025-05-13-platform-engineering-with-webassembly-and-the-platform-harness-pattern/), while running on Kubernetes and integrating with the wider cloud-native ecosystem.

In Cosmonic Control, Wasm component workloads and the wasmCloud system are represented by Kubernetes [custom resource definitions](https://cosmonic.com/docs/custom-resources/), which are managed by Kubernetes operator.

That makes it simple to deploy and manage component workloads via GitOps, with Git repos serving as your source of truth for application state.

![Diagram](https://cosmonic.com/blog/assets/images/gitops-diagram-fb23d4d36b779e96a067692061e37f2b.webp)

In this walkthrough, we'll create a flow in which...

- We create a release for a Wasm component in GitHub
- The release triggers a GitHub Workflow
- The Workflow run builds our Wasm component, uploads it to our GHCR registry, and submits a PR to update the image tag for our component deployment
- The manifest update triggers an automatic sync via Argo CD, which updates the deployed Wasm component to the latest version

## Deploying Cosmonic Control with Argo CD

Let's try it out! In your local Kubernetes environment of choice (I used [`kind`](https://kind.sigs.k8s.io/) version 0.27.0 for this walkthrough), you can deploy Cosmonic Control in just a few steps. We'll deploy Cosmonic Control in Argo CD with a Helm chart, and then we'll create an Argo CD Application for a Wasm component in a Git repository on GitHub.

In order to follow these steps, you'll just need some basic Kubernetes tooling:

- Kubernetes cluster with CoreDNS. ([`kind`](https://kind.sigs.k8s.io/) includes CoreDNS by default.)
- [`kubectl`](https://kubernetes.io/releases/download/)
- [Helm](https://helm.sh/docs) v3.8.0+
- [GitHub account](https://github.com/signup)
- [Free trial key](https://cosmonic.com/control/) for the Cosmonic Control Technical Preview

### 1. Fork the demo repository

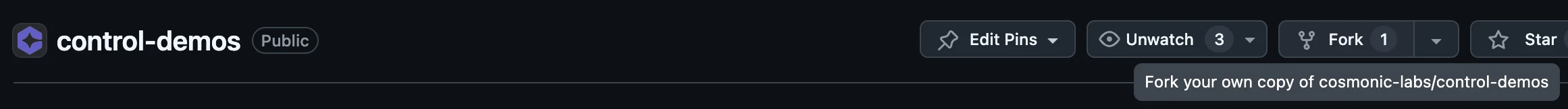

Head over to the [`control-demos` repository in GitHub](https://github.com/cosmonic-labs/control-demos) and create a fork of the repo. (Throughout these instructions, we'll assume that you use the name `control-demos` for your fork—everything will still work if you change the name, but remember to adjust the commands accordingly.)

![Create a fork](https://cosmonic.com/blog/assets/images/create-a-fork-88e861fa306e23cf31c1f57cfc024b2e.webp)

It's up to you whether you'd prefer to clone the repo locally or work entirely in the browser. The only significant difference is that you'll need to copy and paste a few Argo CD Application CRD manifests if you work in the browser.

If you decide to clone the repo, navigate to the `argo-cd` subdirectory:

```shell
git clone https://github.com/<your-github-namespace>/control-demos.git
```

```shell
cd control-demos/integrations/argo-cd
```

### 2. Deploy Argo CD

You can deploy a simple example installation of Argo CD using the [community-maintained Helm chart](https://argoproj.github.io/argo-helm/):

```shell
helm install argocd oci://ghcr.io/argoproj/argo-helm/argo-cd --set-string configs.params."server\.disable\.auth"=true --version 8.1.3 --create-namespace -n argocd
```

This Argo CD installation will run without authentication so we can jump straight into the example.

In your terminal, port-forward the Argo CD server in order to access the Argo CD dashboard. We'll use our local port 3000 for the Argo CD dashboard in order to leave 8080 for the [Cosmonic Control Console UI](https://cosmonic.com/control/).

```shell
kubectl port-forward service/argo-cd-argocd-server -n argocd 3000:443
```

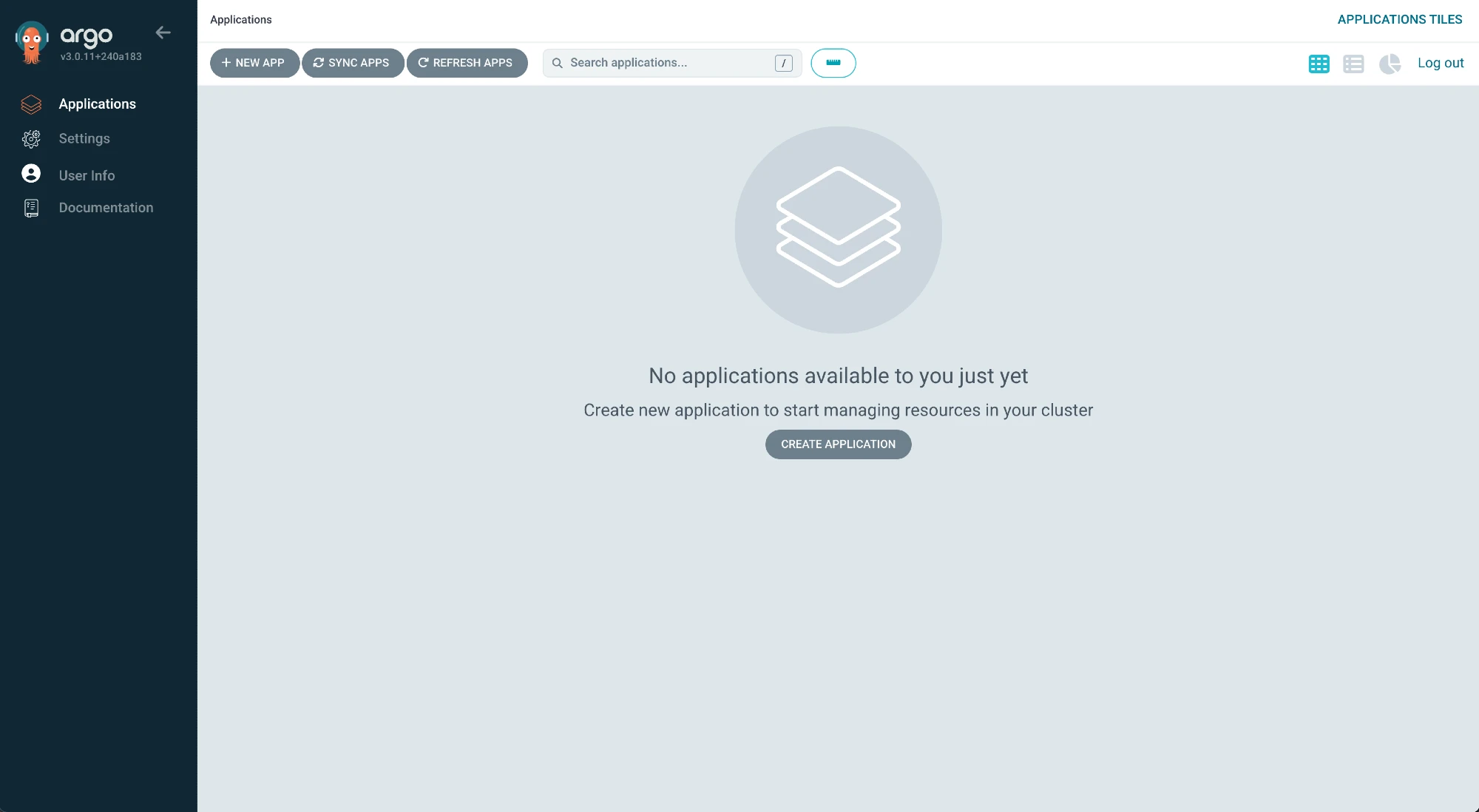

You should see the Argo CD dashboard at [localhost:3000](http://localhost:3000). At the moment, there won't be any running [Argo CD Applications](https://argo-cd.readthedocs.io/en/stable/core_concepts/), the high-level abstraction used by Argo CD for managed deployments.

![dashboard](https://cosmonic.com/blog/assets/images/argo-dashboard-2d320a5edf31729b2f42912d8b986641.webp)

### 3. Deploy Cosmonic Control

> **License key required**
>
> You'll need a **trial license key** to follow these instructions. Sign up for Cosmonic Control's [free trial](https://cosmonic.com/control/) to get a key.

Use the following Argo Application CRD manifest in a file called `control-proj.yaml` to define your deployment of **Cosmonic Control**. (Remember to include your trial license key!)

```yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: cosmonic-control
  namespace: argocd
  annotations:
    # ArgoCD will apply this manifest first.
    argocd.argoproj.io/sync-wave: '1'
spec:
  project: default
  source:
    chart: cosmonic-control
    repoURL: ghcr.io/cosmonic
    targetRevision: 0.2.0
    helm:
      valuesObject:
        cosmonicLicenseKey: '<insert license here>'
  destination:
    name: 'in-cluster'
    namespace: cosmonic-system
  syncPolicy:
    automated: {}
    syncOptions:
      - CreateNamespace=true
    retry:
      limit: -1
      backoff:
        duration: 30s
        factor: 2
        maxDuration: 5m
```

Apply the manifest with `kubectl`:

```shell
kubectl apply -f control-proj.yaml
```

Now we'll deploy a [HostGroup](https://cosmonic.com/docs/custom-resources/#hostgroup) in an Argo Application CRD manifest called `hostgroup-proj.yaml`:

```yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: hostgroup
  namespace: argocd
  annotations:
    # ArgoCD will apply this manifest first.
    argocd.argoproj.io/sync-wave: '1'
spec:
  project: default
  source:
    chart: cosmonic-control-hostgroup
    repoURL: ghcr.io/cosmonic
    targetRevision: 0.2.0
    helm:
      valuesObject:
        http:
          enabled: true
  destination:
    name: 'in-cluster'
    namespace: cosmonic-system
  syncPolicy:
    automated: {}
    retry:
      limit: -1
      backoff:
        duration: 30s
        factor: 2
        maxDuration: 5m
```

Apply the manifest:

```shell
kubectl apply -f hostgroup-proj.yaml
```

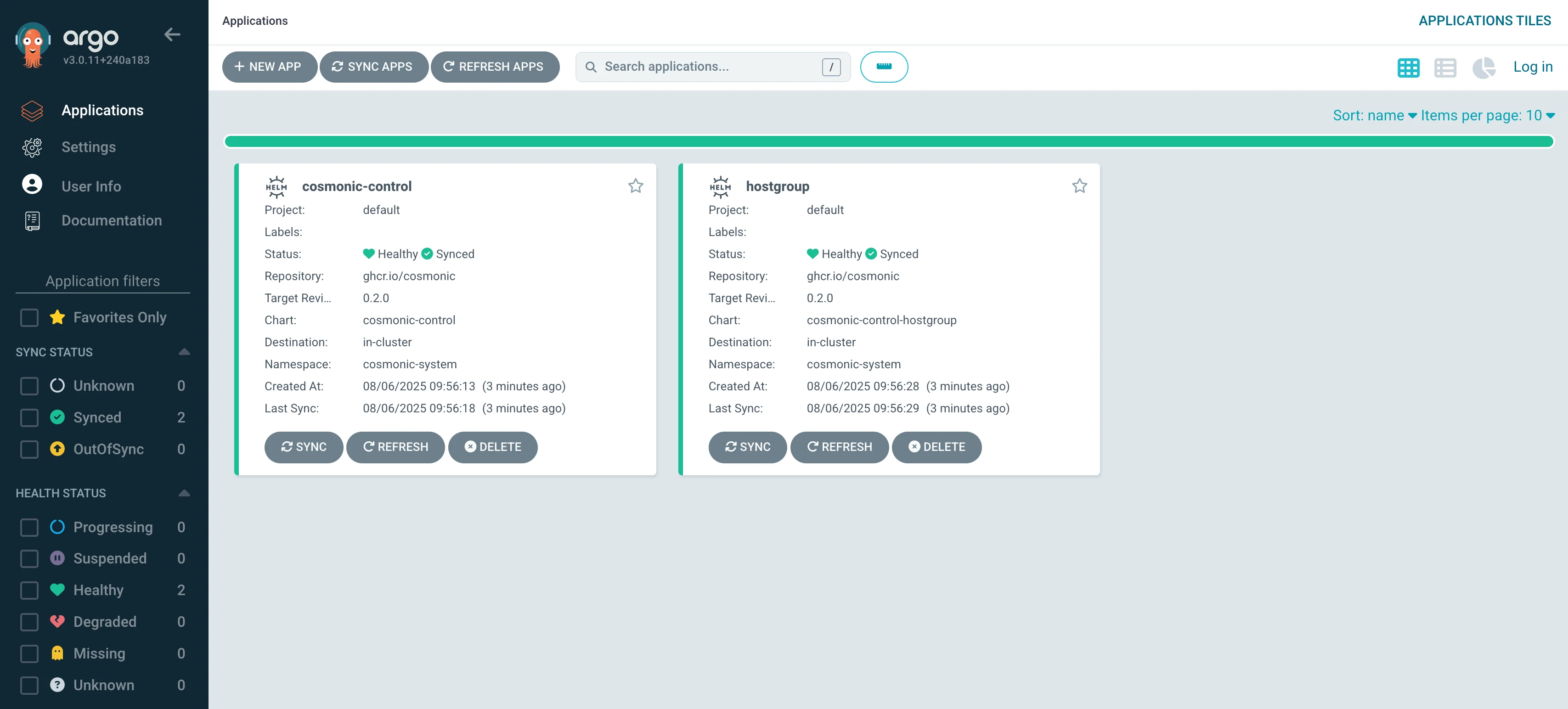

The Applications will appear on the Argo CD dashboard. It may take a moment for the Applications to finish syncing.

![healthy apps](https://cosmonic.com/blog/assets/images/healthy-apps-079cd5752d7551bc2d4039482df78c5b.webp)

Once the Applications are synced and healthy, you can port-forward to access the Cosmonic Control Console UI at [localhost:8080](http://localhost:8080):

```shell
kubectl -n cosmonic-system port-forward svc/console 8080:8080
```

Now we have Argo CD and Cosmonic Control up and running, but we still don't have any Wasm workloads. Let's change that.

### 4. Trigger a Wasm component sync via GitHub release

Now let's try a more in-depth GitOps workflow to trigger a Wasm component sync with a GitHub release.

#### Deploy the hello-world Argo Application CRD manifest

Modify `hello-proj.yaml` to update the `repoURL` on Line 9 to target your new fork of the control-demos repo:

```diff
+ repoURL: https://github.com/<your-github-namespace>/control-demos.git
- repoURL: https://github.com/cosmonic-labs/control-demos.git
```

The Argo Application is now targeting a manifest file in the `hello-world` directory of your control-demos fork.

Let's take a quick look at *that* manifest:

```yaml
apiVersion: runtime.wasmcloud.dev/v1alpha1
kind: Component
metadata:
  name: hello-world
spec:
  image: ghcr.io/cosmonic-labs/components/hello-world:1.0.0
  concurrency: 100
  replicas: 1
  hostSelector:
    matchLabels:
      'hostgroup': 'default'
  exports:
    - wit:
        namespace: wasi
        package: http
        interfaces:
          - incoming-handler
      target:
        provider:
          name: http-default
          namespace: cosmonic-system
        configFrom:
          - name: hello-world-config
---
apiVersion: runtime.wasmcloud.dev/v1alpha1
kind: Config
metadata:
  name: hello-world-config
spec:
  config:
    - name: host
      value: 'localhost:9091'
```

Don't make any changes at this stage, but note the OCI artifact we're using on Line 6: it's in the `cosmonic-labs` namespace and tagged `1.0.0`.

Now apply the `hello-proj.yaml` Argo Application CRD manifest from `integrations/argo-cd/`:

```shell
kubectl apply -f hello-proj.yaml
```

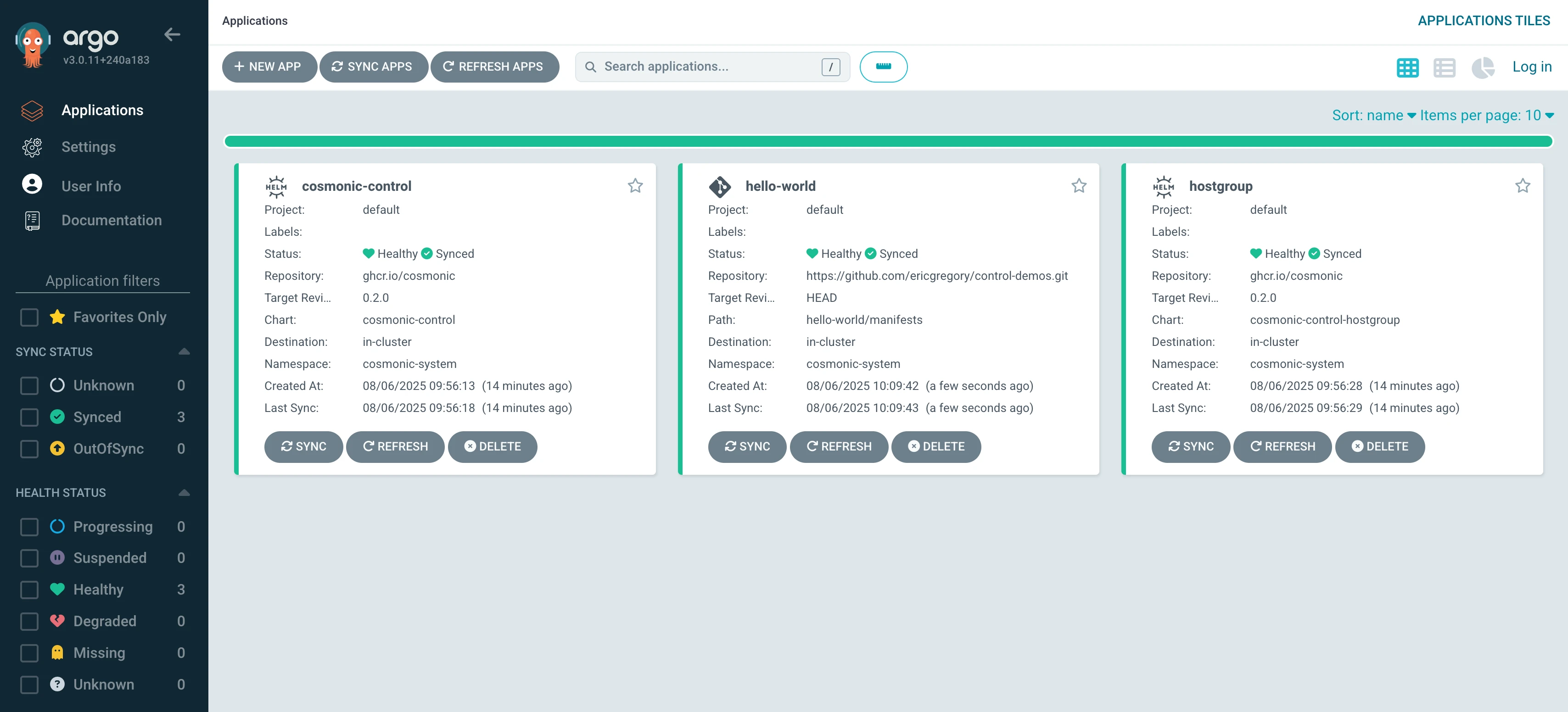

You should quickly see the hello-world Application healthy and synced in the Argo CD dashboard.

![Hello world synced](https://cosmonic.com/blog/assets/images/hello-world-argo-app-a04c543254f0c01ae72b46fa0e220f75.webp)

The `hello-world` Application is configured to **Auto-Sync**—when Argo detects changes to the source manifest, it will roll out an update to the deployment.

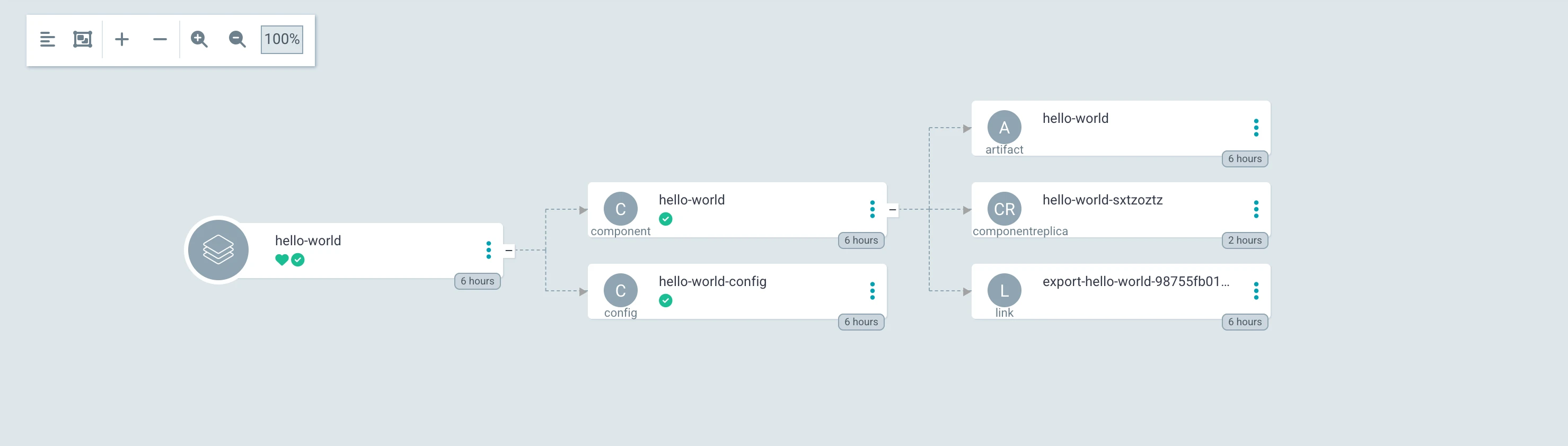

You can click on an Application to view it in more detail. Try clicking on the hello-world Application to view the resources defining the Wasm workload.

![Wasm component workload](https://cosmonic.com/blog/assets/images/argo-component-47745f3b97f023019b410edd012a1f0a.webp)

#### Optional: Modify the Wasm component

While not strictly necessary for the purposes of this example, at this stage you could use the GitHub web UI to edit the Rust code in `hello-world/src/lib.rs` and change the "Hello world" message, like so:

```diff
+ Ok(http::Response::new("Hello from Cosmonic Control and Argo CD!\n"))
- Ok(http::Response::new("Hello from Cosmonic Control!\n"))
```

If you decide to edit the message, commit the changes.

#### Create a release

Now we'll create a release in GitHub. Click "Create a new release" in the right sidebar of your control-demo fork's repository page, or navigate to `https://github.com/<your-github-namespace>/control-demos/releases/new`.

Create a new release

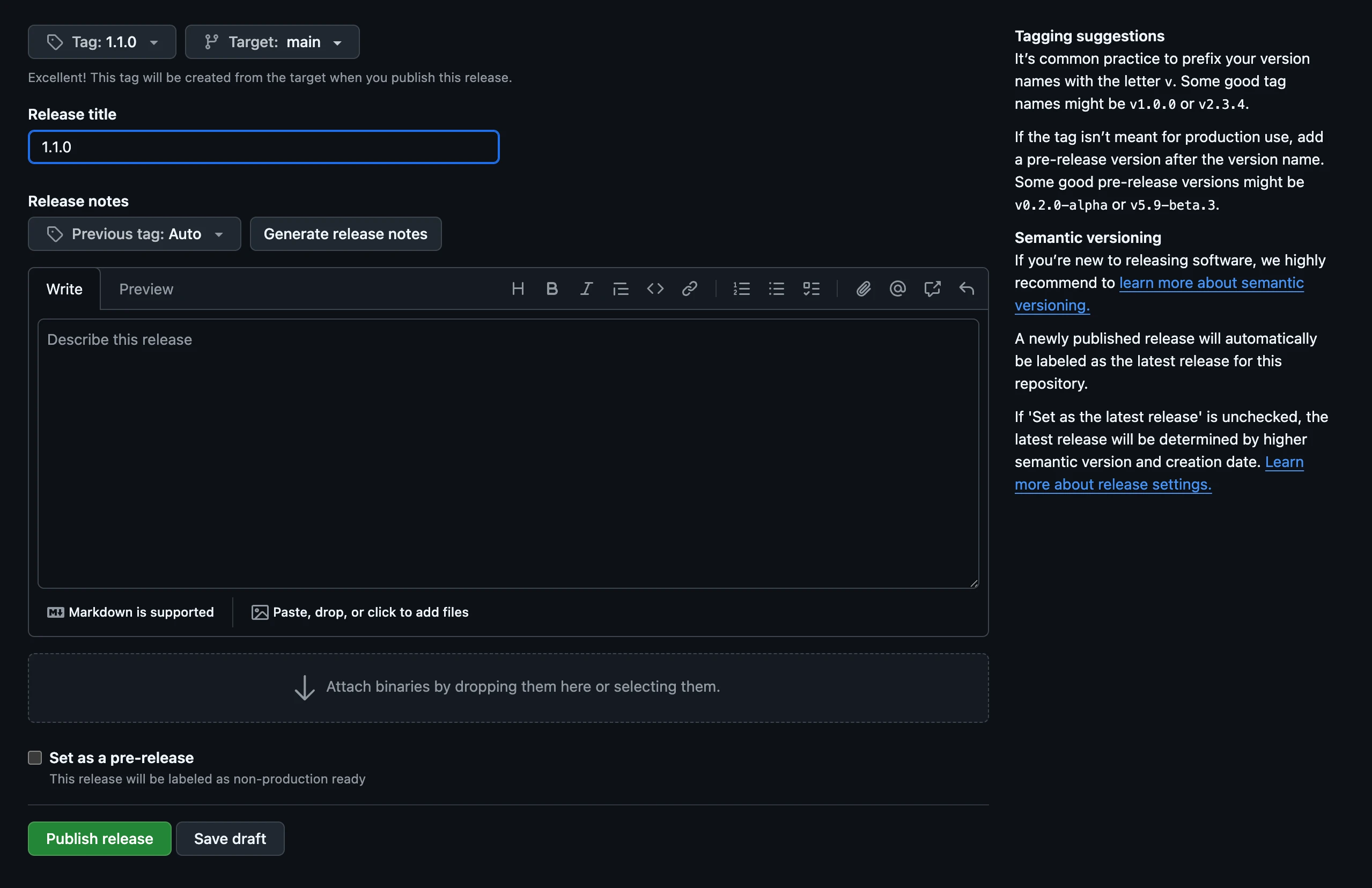

Let's call our release `1.1.0`. Create a new image tag, title the release, and click "Publish release."

![Publish release](https://cosmonic.com/blog/assets/images/publish-release-effc4886bc0e5c8965e8781ba2ad8312.webp)

Publishing the release will trigger a GitHub Workflow. (If you'd like to watch the run, you can click the "Actions" tab for the repo and select "publish" under Jobs.) This workflow will:

- Compile a Wasm binary from the Rust code in the hello-world directory using the [setup-wash GitHub Action](https://github.com/wasmCloud/setup-wash-action)
- Push the Wasm component to ghcr.io as an OCI artifact under your namespace
- Update the image tag in the component's Kubernetes manifest to reflect the version of your new release
- Commit and push the manifest update in your repo

**Note**: The first time this workflow runs in your repository, it will take several minutes to build the necessary tooling, but those tools will be cached—future runs in the repo will generally take under a minute.

In the meantime, let's take a look at the last steps of the GitHub Workflow file:

```yaml
- name: Update image tag in Kubernetes manifest
  working-directory: ./hello-world
  run: |
    DEPLOYMENT_FILE="manifests/component.yaml"
    OLD_IMAGE=$(grep "image:" "$DEPLOYMENT_FILE" | awk '{print $2}')
    NEW_IMAGE="ghcr.io/${{ env.GHCR_REPO_NAMESPACE }}/components/hello-world:${{ github.ref_name }}"

    # Update the image tag
    sed -i "s|image:.*|image: $NEW_IMAGE|" "$DEPLOYMENT_FILE"

- name: Create Pull Request
  uses: peter-evans/create-pull-request@v7
  with:
    token: ${{ secrets.GITHUB_TOKEN }}
    commit-message: |
      Update image tag in manifest to ${{ github.ref_name }}
    title: Update image tag in manifest to ${{ github.ref_name }}
```

After building the component from your repo, the run submits a pull request updating the image specification in the hello-world manifest that our Argo CD hello-world Application is targeting, so that the manifest specifies a 1.1.0 image in *your* GHCR registry. This change to the manifest will trigger a sync in Argo CD.

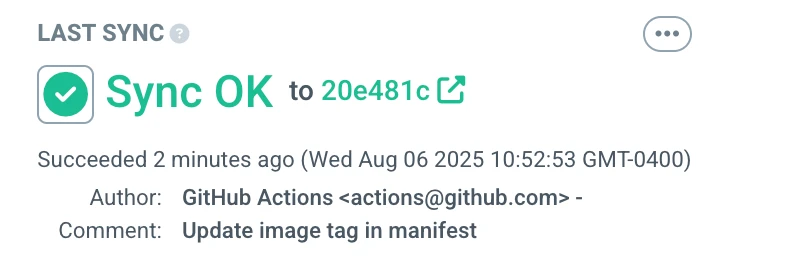

Once the run completes successfully, merge the automated pull request, switch over to the Argo CD dashboard, and take a look at the hello-world Application. You should see that it has synced.

![Successful sync](https://cosmonic.com/blog/assets/images/sync-ok-37da5b7acaad747353383f2aed151ae2.webp)

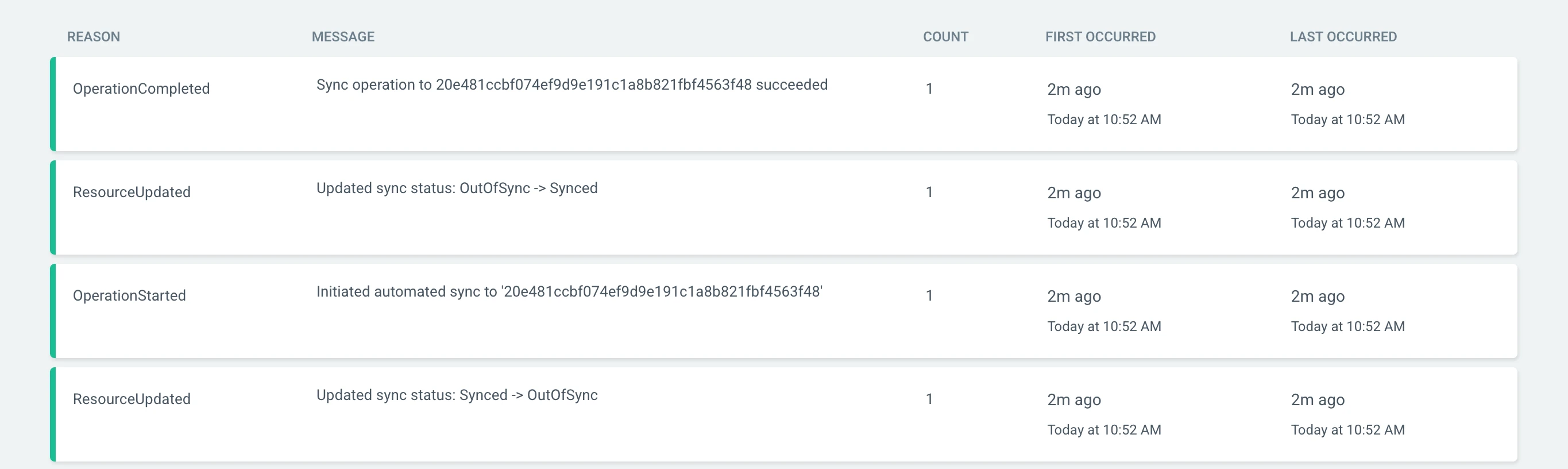

You can click through to see the commit that triggered the sync, or click on the Application at the left-hand side of the diagram and see the events associated with it:

![Events in Argo CD UI](https://cosmonic.com/blog/assets/images/argo-events-ae55a7556a47ef945fc1a5d673378eeb.webp)

#### Test the deployment

Port-forward to access the hello-world component at [localhost:9091](http://localhost:9091):

```shell
kubectl -n cosmonic-system port-forward svc/hostgroup-default 9091:9091
```

In a new terminal tab:

```shell
curl localhost:9091
```

```text
Hello from Cosmonic Control and Argo CD!
```

### 5. Clean up

It's that simple. Once you're done, you can clean up your environment:

```shell
kubectl delete -f control-proj.yaml
```

```shell
kubectl delete -f hostgroup-proj.yaml
```

```shell
kubectl delete -f hello-proj.yaml
```

```shell
helm uninstall argocd -n argocd
```

If you're using `kind`:

```shell
kind delete cluster
```

## Conclusion

With Cosmonic Control, teams can harness the power of Wasm components for entirely new patterns of ultra-dense deployment and composition-driven, polyglot development—all with their existing cloud-native infrastructure.

To learn more about Cosmonic Control, [check out the documentation](https://cosmonic.com/docs/) and [start a free trial](https://cosmonic.com/control/) today.
